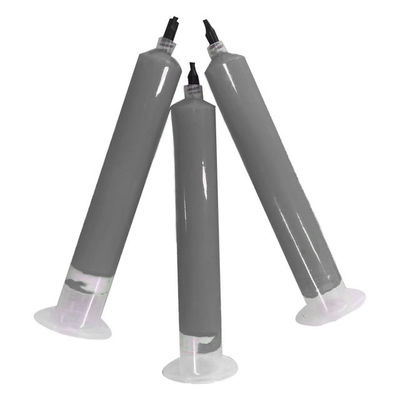

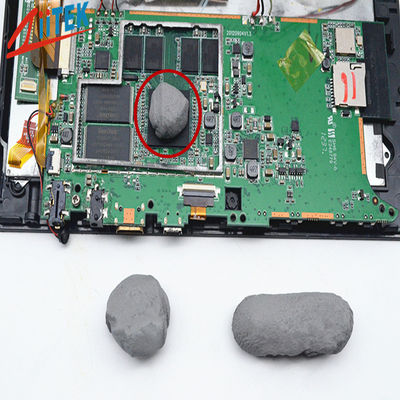

Ziitek TIF®050-11-1 is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®050-11-1 is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Feature
> Thermal conductivity: 5.0 W/mK
> Low stress, protect sensitive components.
> Strong plasticity. good stability
> Superior dielectric properties
Application
> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic laboratory equipment
| TIF®050-11-1 Typical Properties |
| Property |
Value |
Test method |
| Color |
Dark Gray |
Visual |
| Construction & Composition |
Ceramic filled silicon material |
- |
| Density(g/cm³) |
3.25g/c |
ASTM D792 |
| Thermal conductivity |
5.0W/mK |
ASTM D5470 |
| Breakdown Voltage (V/mm) |
≥6000 |
ASTM D149 |
| Dielectric constant @1MHz |
7.7 |
ADTM D150 |
| Flame Rating |
V-0 |
UL 94 |
| Volume resistivity(Ohm.cm) |
8.0 X 1013 |
ASTM D257 |
Product Specification
30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
Custom packaging available for automation use. Please contact us for confirming.
