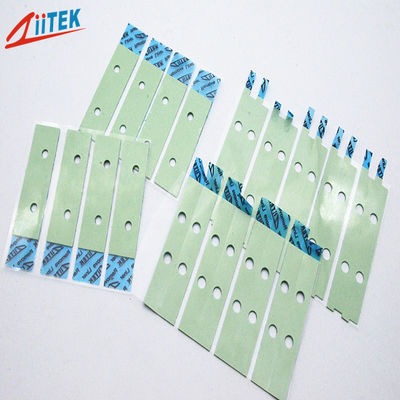

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

China Dongguan Ziitek Electronic Materials & Technology Ltd. Certificações
China Dongguan Ziitek Electronic Materials & Technology Ltd. Certificações
A almofada condutora térmica é de vista e de trabalho muito bom. Nós não temos nenhuma necessidade para a outra almofada condutora térmica agora!

—— Peter Goolsby

Eu tinha cooperado com o Ziitek por 2 anos, forneceram os materiais condutores térmicos de alta qualidade, e a entrega a tempo, recomenda seus materiais da mudança de fase

—— Antonello Sau

Boa qualidade, bom serviço. Sua equipe dá-nos sempre a ajuda e a resolução, esperança que nós seremos bom sócio todo o tempo!

—— Chris Rogers

Estou Chat Online Agora

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Imagem Grande :  Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Detalhes do produto:
Lugar de origem: CHINA
Marca: ZIITEK
Certificação: UL and RoHs
Número do modelo: Série TIF100-07S
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1000pcs
Preço: Negociável
Detalhes da embalagem: 1000pcs/bolsa
Tempo de entrega: 3-5 dias de trabalho
Habilidade da fonte: 100000pcs/dia
Descrição de produto detalhada
Nome dos produtos: Almofada térmica do radiador 1.5w 0.5mm ~ 5.0mm almofada de preenchimento de lacuna térmica nova ene Condutividade térmica: 1,5 W/m-K
Cor: verde Amostra: Amostra grátis
Grossura: 0.020" (< 0,5 mm) ~ 0,200" (< 5,0 mm) Aplicativo: Radiador de refrigeração de veículos de nova energia
Dureza: 45 costa 00 temp do uso contínuo: -45 a 200°C
Palavras -chave: almofada térmica do emissor de isofrequência

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads



The TIF®100-07S Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> Easy release construction
> Electrically isolating
> High durability


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF®100-07S Series
Property Value Test method
Color Green ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 45 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
