Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

China Dongguan Ziitek Electronic Materials & Technology Ltd. Certificações
China Dongguan Ziitek Electronic Materials & Technology Ltd. Certificações
A almofada condutora térmica é de vista e de trabalho muito bom. Nós não temos nenhuma necessidade para a outra almofada condutora térmica agora!

—— Peter Goolsby

Eu tinha cooperado com o Ziitek por 2 anos, forneceram os materiais condutores térmicos de alta qualidade, e a entrega a tempo, recomenda seus materiais da mudança de fase

—— Antonello Sau

Boa qualidade, bom serviço. Sua equipe dá-nos sempre a ajuda e a resolução, esperança que nós seremos bom sócio todo o tempo!

—— Chris Rogers

Estou Chat Online Agora

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

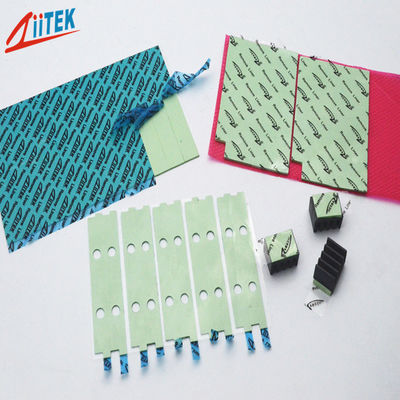

Imagem Grande :  Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Detalhes do produto:
Lugar de origem: CHINA
Marca: ZIITEK
Certificação: UL and RoHs
Número do modelo: Série TIF100-07U
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1000pcs
Preço: Negociável
Detalhes da embalagem: 1000pcs/bolsa
Tempo de entrega: 3-5 dias de trabalho
Habilidade da fonte: 100000pcs/dia
Descrição de produto detalhada
Nome dos produtos: Almofada térmica fotovoltaica de tamanho personalizado, 1-15w, 0.5mm ~ 5.0mm, almofadas condutoras d Palavras -chave: Almofada térmica
Condutividade térmica: 1,5 W/m-K Cor: verde
Grossura: 0.020" (< 0,5 mm) ~ 0,200" (< 5,0 mm) Dureza: 27 Shore 00
temp do uso contínuo: -45 a 200°C Amostra: Amostra grátis
Aplicativo: Resfriamento LED fotovoltaico GPU Ssd para laptop

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling



The TIF®100-07U Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator



Typical Properties of TIF®100-07U Series
Property Value Test method
Color Green ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.2g/cc ASTM D297
Hardness 27 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

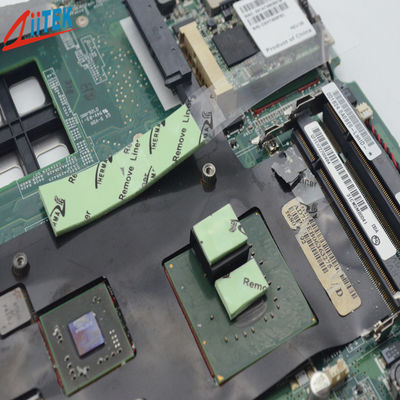

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL
