Electrically Isolating Silicon Thermal Conductive Insulator 0.152mm Thermal Interface Material Manufacturer

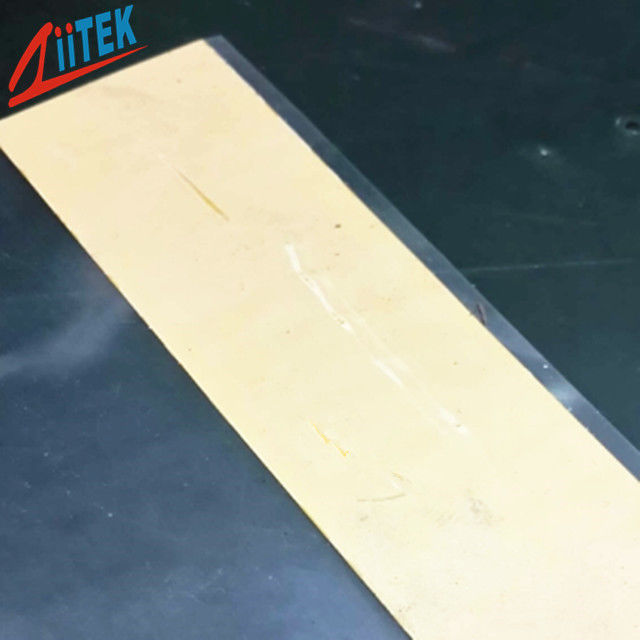

Imagem Grande : Electrically Isolating Silicon Thermal Conductive Insulator 0.152mm Thermal Interface Material Manufacturer

Detalhes do produto:

Place of Origin:	China
Marca:	Ziitek
Certificação:	RoHs and UL
Model Number:	TIS806K-13-08

Condições de Pagamento e Envio:

Minimum Order Quantity:	1000PCS
Preço:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Payment Terms:	T/T in advance
Supply Ability:	100000PCS/Day

Contato

Descrição de produto detalhada

Products name:	Electrically Isolating Silicon Thermal Conductive Insulator 0.152mm Thermal Interface Material Manufacturer	Density:	2.4 g/cc
Application:	GPU CPU Heatsink Cooling	Construction & Compostion:	Ceramic Filled Silicone Elastomer / fiberglass
Continuos Use Temp:	-60 to 180℃	Thermal conductivity:	1.3W/mK
Key words:	Thermally Conductive Insulator	Thickness range:	0.006(inch）/ 0.152mm
Color:	Beige

Electrically Isolating Silicon Thermal Conductive Insulator 0.152mm Thermal Interface Material Manufacturer

The TIS^®806K-13-08 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

> Easy release construction
> Electrically isolating
> High durability

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

> CPU
> Display card
> Mainboard/mother board
> Notebook

> Power supply
> Heat pipe thermal solutions

> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics

Typical Properties of TIS^®806K-13-08 Series
Property	Value	Test Method
Color	Beige	Visual
Construction &Compostion	Ceramic filled silicone elastomer /Polyimide film	******
Thickness range	0.006inch (0.152mm)	ASTM D374
Tensile Strength(MPa)	34	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	6000	ASTM D149
Dielectric Constant @ 1MHz	3.7	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL(E331100)
Thermal conductivity	1.3W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.46	ASTM D5470

Standard Thicknesses

0.006inch (0.152mm)

Standard Sizes
12" x 160"(304mm x 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

Electrically Isolating Silicon Thermal Conductive Insulator 0.152mm Thermal Interface Material Manufacturer 0

Packaging Details & Lead time

The packaging of silicone insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
